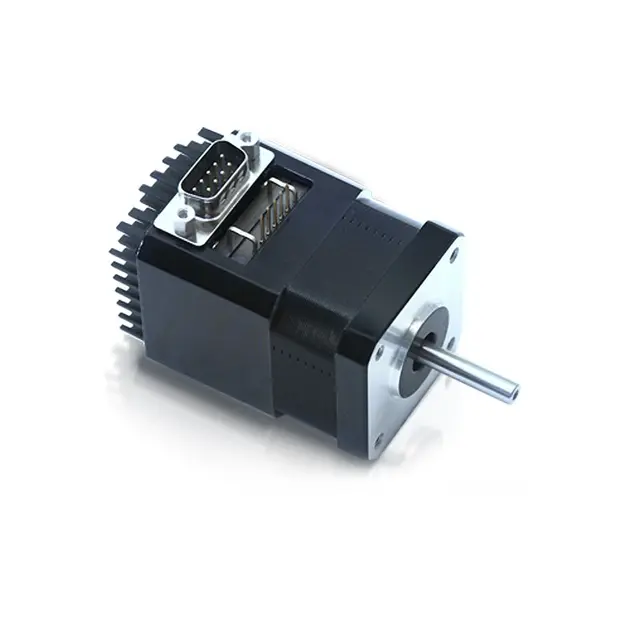

The Silverpak 17CE series combines a motor, driver, controller, and encoder into one small convenient package. These utilize a NEMA 17 frame and a 1.8° step angle.

‍Silverpak 17CE Series: MOTOR + DRIVER + CONTROLLER + ENCODER

Features and Benefits:

• NEMA 17, 1.8º Bipolar Step Motor
• Operates from +12 to 24 VDC
• Up to 85 oz-in of Holding Torque
• Phase current ranges from 0.25 to 2.0 Amps Peak

Specifications:

• 42.00 mm Frame Size
• 1.8° Step Angle
• 68.3 to 82.3 mm Length
• 0.21 to 0.61 Nm Holding Torque

‍
